SB560

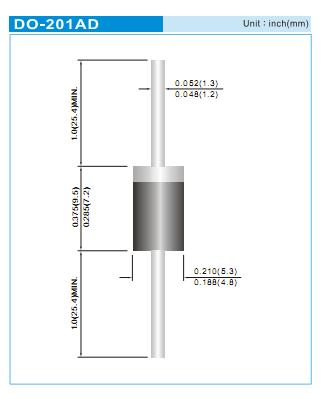

5.0A schottky barrier rectifier, DO-201AD, Color band denotes cathode, 60V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.20

PartNumber:: SB560

Brand:: Pan Jit International Inc. - PanJit | Pack: DO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack Yi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-14

From Other Seller

Part Number:SB560
US $0.10 - 0.20
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SB560 is a 5.0A schottky barrier rectifier.

Parametrics

SB560 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:60V; (2)Maximum RMS Voltage:42V; (3)Maximum DC Blocking Voltage:60V; (4)Maximum Average Forward Current:5.0A; (5)Peak Forward Surge Current:150A; (6)Maximum Forward Voltage at 5.0A, per leg:0.70V; (7)Maximum DC Reverse Current at Rated DC Blocking Voltage:0.1mA; (8)Operating junction Temperature Range:-55℃ to +150℃; (9)Typical junction resistance:50℃/W; (10)storage temperature range:-50℃ to +150℃.

Features

SB560 features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound; (2)Exceeds environmental standards of MIL-S-19500/228; (3)For use in low voltage,high frequency inverters, free wheeling, and polarity protection applications; (4)In compliance with EU RoHS 2002/95/EC directives.
