Product Summary
The AS179-92 is an IC FET SPDT switch in a low cost miniature SC-70 6 lead plastic package. The AS179-92 features low insertion loss and positive voltage operation with very low DC power consumption. This general purpose switch can be used in a variety of telecommunications applications.
Parametrics
AS179-92LF absolute maximum ratings: (1)RF input power 6 W > 500 MHz, 0/+7 V control; (2)Control voltage: -0.2 V, +8 V; (3)Operating temperature: -40 ℃ to +85 ℃; (4)Storage temperature: -65 ℃ to +150 ℃; (5)θJC: 25 ℃/W.
Features
AS179-92LF features: (1)P1 dB +30 dBm typical @ +3 V; (2)IP3 43 dBm typical @ +3 V; (3)Low insertion loss (0.3 dB @ 0.9 GHz); (4)Low DC power consumption; (5)Ultra miniature SC-70 6 lead package; (6)PHEMT process; (7)Available lead (Pb)-free MSL-1 @ 250℃ per JEDEC J-STD 020.

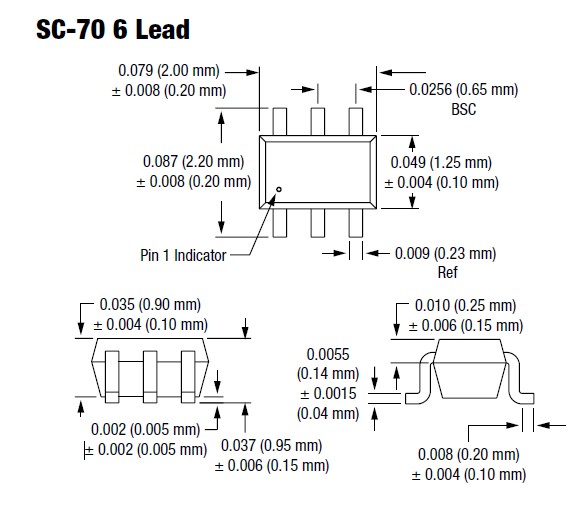

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AS179-92LF |
Skyworks Solutions, Inc. |
RF Switch ICs 802.11b/g IL .3dB IP3=+43dBm typ. |
Data Sheet |
|
|
||||||||||||
 |
AS179-92LF-EVB |
|
EVAL BOARD FOR AS179-92 SPDT SW |
Data Sheet |
|
|
||||||||||||
