Product Summary

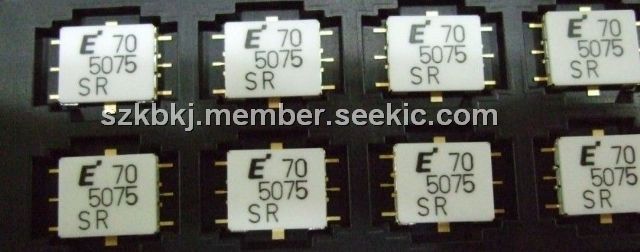

The EMM5075VU is a MMIC amplifier that contains a three-stages amplifier, internally matched, for standard communications band in the 12.7 to 15.4GHz frequency range. The EMM5075VU’s stringent Quality Assurance Program assures the highest reliability and consistent performance.

Parametrics

EMM5075VU absolute maximum ratings: (1)Drain-Source Voltage: 10 V; (2)Gate-Source Voltage: -3 V; (3)Input Power Pin: 26 dBm; (4)Storage Temperature: -55 to +125 ℃.

Features

EMM5075VU features: (1)High Output Power: Pout=33.0dBm (typ.); (2)High Linear Gain: GL=24.0dB (typ.); (3)Broad Band: 12.7~15.4GHz; (4)Impedance Matched Zin/Zout=50Ω; (5)Small Hermetic Metal-Ceramic SMT Package(VU).

Diagrams

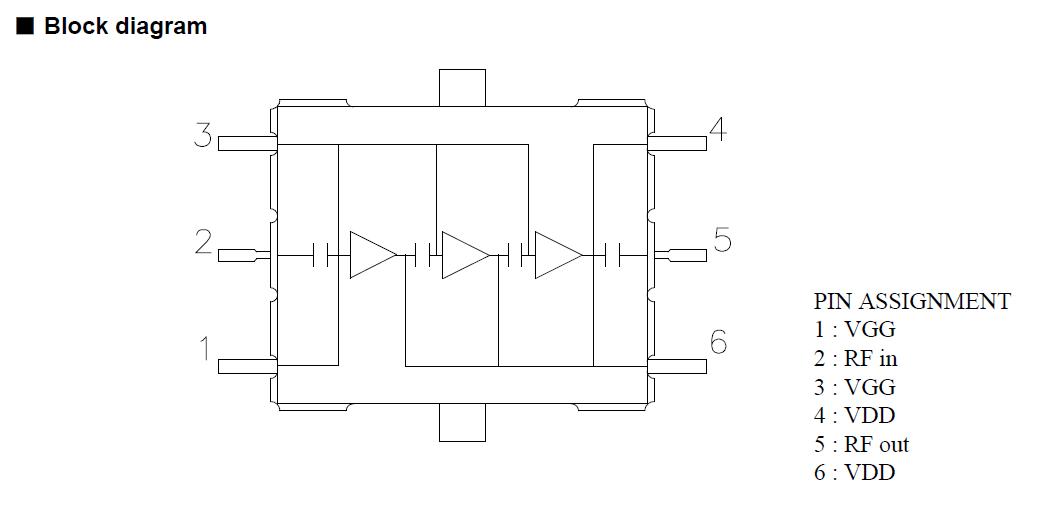

EMM5075VU block diagram
