Product Summary

The BD10100CS is a 10.0A schottky barrier rectifier.

Parametrics

BD10100CS absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:100V; (2)Maximum RMS Voltage:70V; (3)Maximum DC Blocking Voltage:100V; (4)Maximum Average Forward Current:10.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):100A; (6)Typical thermal resistance:3.0℃/W; (7)Maximum Forward Voltage at 5.0A, per element:0.80V; (8)Maximum DC Reverse Current at TJ=25℃:0.05mA; (9)Operating Junction and Storage Temperature Range:-65℃ to +175℃.

Features

BD10100CS features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)For through hole applications; (4)Low profile package; (5)Built-in strain relief; (6)Low power loss, High efficiency; (7)High surge capacity; (8)For use in low voltage high frequency inverters, free wheeling, and polarity protection applications; (9)In compliance with EU RoHS 2002/95/EC directives.

Diagrams

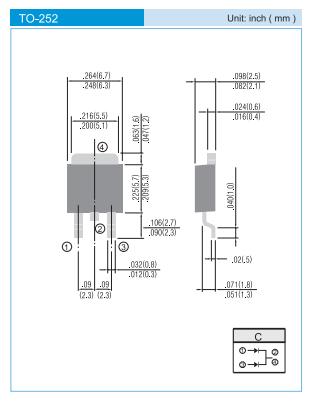

BD10100CS package dimensions
