Product Summary

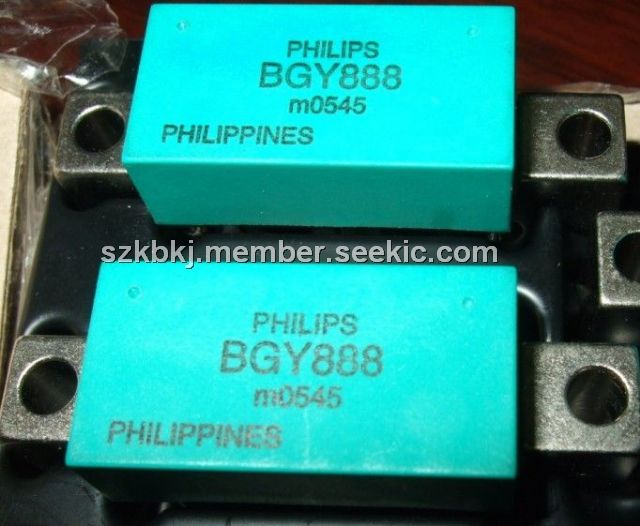

The BGY888 is a Hybrid high dynamic range amplifier module operating with a voltage supply of 24 V in a SOT115J package. The high gain module consists of two cascaded stages both in cascode configuration. The BGY888 is suitable for Single module line extender in CATV systems operating over a frequency range of 40 to 860 MHz.
Parametrics
BGY888 absolute maximum ratings: (1)Vi, RF input voltage: 55 dBmV; (2)Tstg, storage temperature: -40 to +100℃; (3)Tmb, operating mounting base temperature: -20 to +100℃.
Features
BGY888 features: (1)Excellent linearity; (2)Extremely low noise; (3)High gain; (4)Excellent return loss properties.

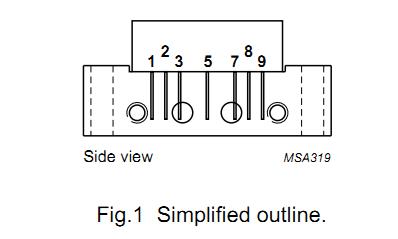

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BGY888 |
NXP Semiconductors |
RF Amplifier BULK CATV-MOD |
Data Sheet |
Negotiable |
|
||||||||||
 |
BGY888,112 |
NXP Semiconductors |
RF Amplifier BULK CATV-MOD |
Data Sheet |
|
|
||||||||||
