Product Summary
The CXB1100Q is an ultra high speed monolithic ECL IC, which contains four 3-input OR/NOR gates.
Parametrics
CXB1100Q characteristics: (1)power supply current, IEE: -127 mA min, -93 mA typ, -65mA max; (2)propagation delay time: Tplh: 300ps min, 410ps typ, 520ps max; Tphl: 300ps min, 410ps typ, 520ps max; (3)rise time, Ttlh at 20% to 80%: 210ps typ; 270ps max; (4)fall time, Tthl at 20% to 80%: 160ps typ; 210ps max.
Features
CXB1100Q features: (1)typical Ac characteristics: Tpd=410ps; Ttlh=210ps;Tthl=160ps; (2)internal pull down resistors on input pins to maintain logic low level with the pins left open ; (3)ECL look compatible I/O levels; (4)differential output.

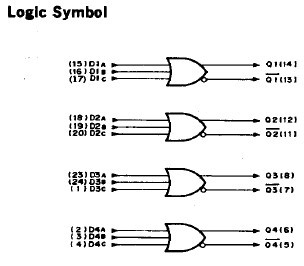

Diagrams
 |
