Product Summary

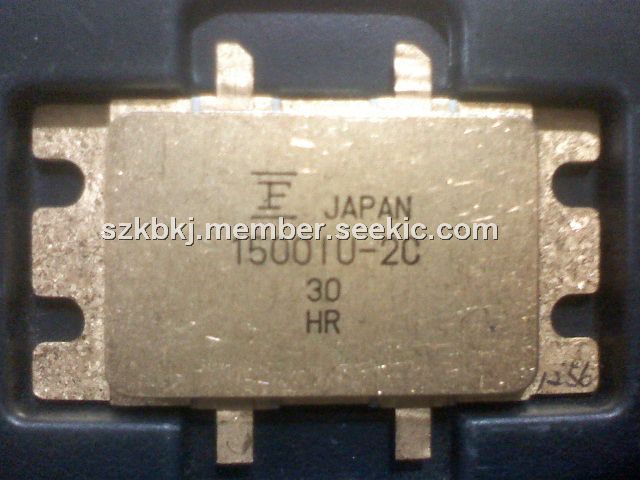

The FLL1500IU-2C is a 150 Watt GaAs FET that employs a push-pull design that offers ease of matching, greater consistency and a broader bandwidth for high power L-band amplifiers. The FLL1500IU-2C is targeted to reduce the size and complexity of highly linear, high power base station transmitting amplifiers. This new product is well suited for use in W-CDMA and IMT 2000 base station amplifiers as it offers high gain, long term reliability and ease of use. The applications of the FLL1500IU-2C include Solid State Base-Station Power Amplifier, W-CDMA and IMT 2000 Communication Systems.
Parametrics
FLL1500IU-2C absolute maximum ratings: (1)Drain-Source Voltage: 15 V; (2)Gate-Source Voltage: -5 V; (3)Total Power Dissipation: 187.5 W at TC=25 ℃; (4)Storage Temperature: -65 to +175℃; (5)Channel Temperature: 175 ℃.
Features
FLL1500IU-2C features: (1)Push-Pull Configuration; (2)High Power Output: 150W (Typ.); (3)High PAE: 48% (Typ.); (4)Broad Frequency Range: 2100 to 2200 MHz; (5)Suitable for class AB operation.

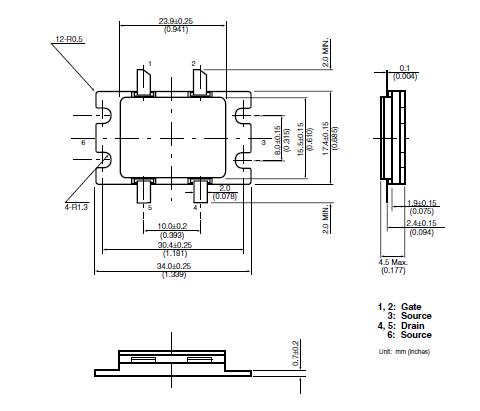

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FLL1500IU-2C |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
FLL1200IU-2 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FLL1200IU-3 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FLL1500IU-2C |
Other |
|
Data Sheet |
Negotiable |
|
||||
