ER306

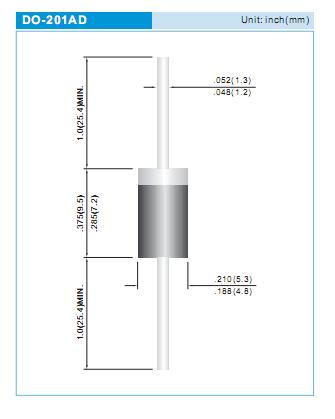

Hermetically sealed, Low leakage, High surge capability, DO-201AD, superfast recovery rectifier, 600V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.15

PartNumber:: ER306

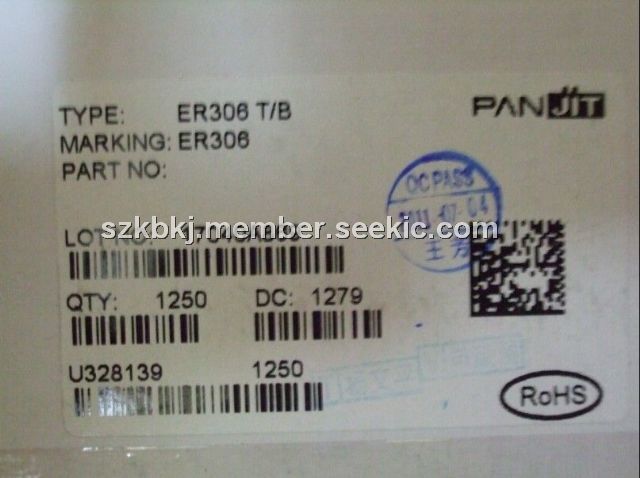

Brand:: Pan Jit International Inc. - PanJit | Pack: DO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack Yi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-14

From Other Seller

Part Number:ER306
US $0.10 - 0.15
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ER306 is a superfast recovery rectifier.

Parametrics

ER306 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:600V; (2)Maximum RMS Voltage:420V; (3)Maximum DC Blocking Voltage:600V; (4)Maximum Average Forward Current:3.0A; (5)Peak Forward Surge Current:125A; (6)Maximum Forward Voltage at 2.0A DC:1.7V; (7)Maximum DC Reverse Current at Rated DC Blocking Voltage:1.0uA; (8)Typical Junction capacitance:35pF; (9)Operating and Storage Temperature Range:-55℃ to +150℃; (10)Typical junction resistance:20℃/W.

Features

ER306 features: (1)Superfast recovery times-epitaxial construction; (2)Low forward voltage, high current capability; (3)Exceeds environmental standards of MIL-S-19500/228; (4)Hermetically sealed; (5)Low leakage; (6)High surge capability; (7)Plastic package has Underwriters Laboratories; (8)Flammability Classification 94V-O utilizing; (9)Flame Retardant Epoxy Molding Compound; (10)In compliance with EU RoHS 2002/95/EC directives.
