Product Summary

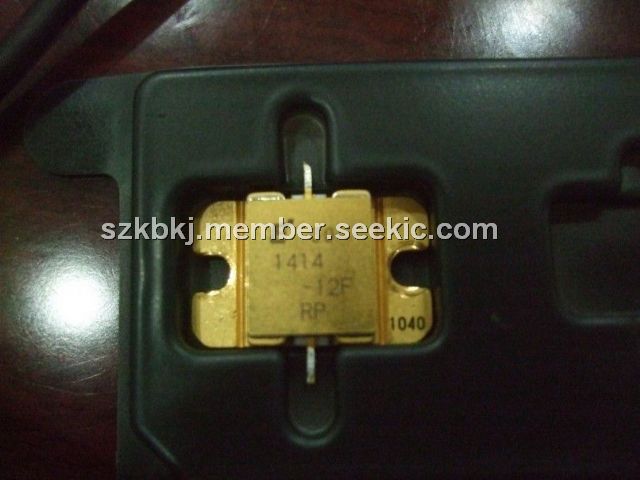

The FLM1414-12F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a 50 ohm system. Eudynas stringent Quality Assurance Program assures the highest reliability and consistent performance.
Parametrics
FLM1414-12F absolute maximum ratings: (1)Drain-Source Voltage, VDS: 15V; (2)Gate-Source Voltage, VGS: -5V; (3)Total Power Dissipation, PT: 57.6W; (4)Storage Temperature, Tstg: -65 to +175℃; (5)Channel Temperature, Tch: 175℃.
Features
FLM1414-12F features: (1)High Output Power: P1dB = 40.5dBm (Typ.); (2)High Gain: G1dB = 5.0dB (Typ.); (3)High PAE: nadd = 23% (Typ.); (4)Broad Band: 14.0 ~ 14.5GHz; (5)Impedance Matched Zin/Zout = 50Ω; (6)Hermetically Sealed.
Diagrams
 |
