Product Summary

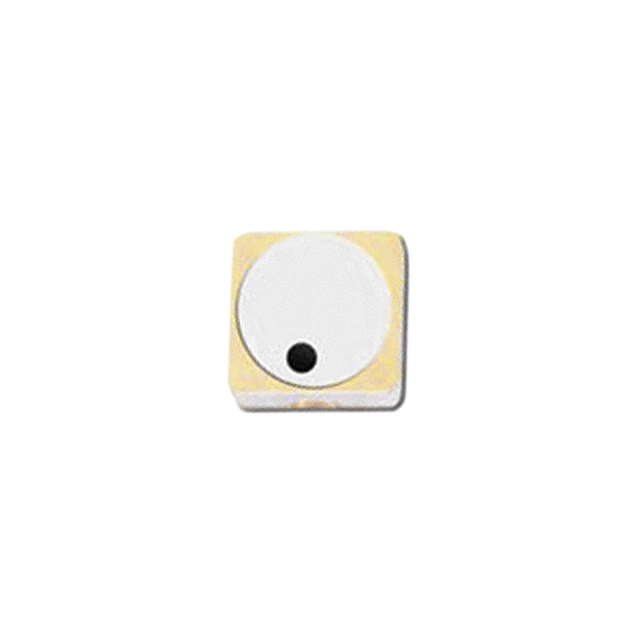

The APD2220-000 is a silicon PIN diode chip designed for use as switch and attenuator devices in high-performance hybrid microwave integrated circuits. The APD2220-000 PIN diode designs are useful over a wide range of frequencies from below 100 MHz to beyond 30 GHz. The APD2220-000 utilizes Skyworks well-established silicon technology resulting in high resistivity and tightly con- trolled I region width PIN diodes. The device has low resistance and capacitance at zero bias and reverse bias. The thick I region APD2220-000 is primarily designed for low-distortion attenuator applications.

Parametrics

APD2220-000 absolute maximum ratings: (1)Power dissipation: Pdiss =175-Tamb/θ W; (2)Operating temperature: -65 to +175℃; (3)Storage temperature: -65 to +200℃.

Features

APD2220-000 features: (1)Established Skyworks PIN diode process; (2)For switch and attenuator applications; (3)Low capacitance designs to 0.05 pF; (4)Voltage ratings to 100 V; (5)Chip size smaller than 15 mils square; (6)Available lead (Pb)-free, RoHS-compliant, and Green.

Diagrams

APD2220-000 schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
APD2220-000
APD2220-000


DIODE SILICON PIN 100V CHIP

Data Sheet

0-100: $3.00
100-500: $1.80
500-1000: $0.95
