Product Summary
The MBR20200FCT is a 20 amperes schottky barrier rectifier.
Parametrics
MBR20200FCT absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:200V; (2)Maximum RMS Voltage:140V; (3)Maximum DC Blocking Voltage:200V; (4)Maximum Average Forward Current:20A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):200A; (6)Typical thermal resistance:2℃/W; (7)Maximum Forward Voltage at 10A, per element:0.9V; (8)Maximum DC Reverse Current at TJ=25℃:0.05mA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.
Features
MBR20200FCT features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)Flame Retardant Epoxy Molding Compound; (4)Metal silicon junction, majority carrier conduction; (5)Low power loss, high efficiency; (6)High current capability; (7)Guardring for overvlotage protection; (8)For use in low voltage,high frequency inverters free wheeling, and polarlity protection applications; (9)In compliance with EU RoHS 2002/95/EC directives.

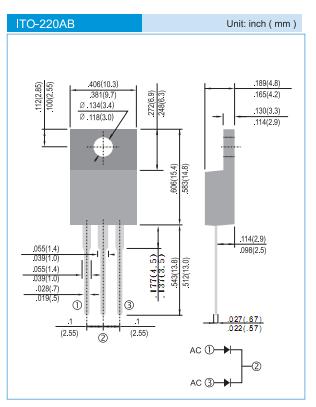

Diagrams
