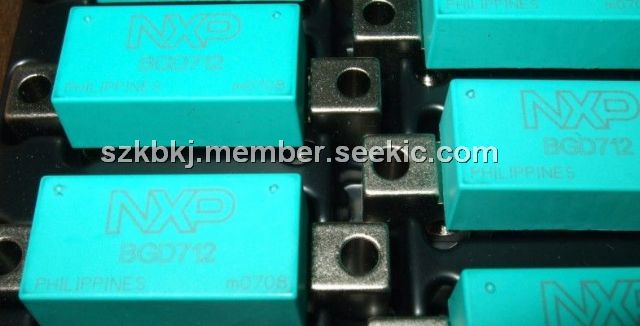

Product Summary

The BGD712 is a Hybrid amplifier module in a SOT115J package operating with a voltage supply of 24 V (DC). It is suitable for CATV systems operating in the 40 to 750 MHz frequency range.

Parametrics

BGD712 absolute maximum ratings: (1)VB, supply voltage: 30 V; (2)Vi, RF input voltage: 70 dBmV; (3)Tstg, storage temperature: -40 to +100℃; (4)Tmb, operating mounting base temperature: -20 to +100℃.

Features

BGD712 features: (1)Excellent linearity; (2)Extremely low noise; (3)Excellent return loss properties; (4)Silicon nitride passivation; (5)Rugged construction; (6)Gold metallization ensures excellent reliability.

Diagrams

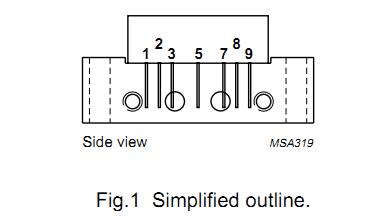

BGD712 simplified outline
