MRF150

module, high order IMD, 30MHz, 150 Watts, 17 dB, 125 Vdc, load mismatch

Rated 5 Rating 5 | reviews | Write a review

Price:: US $78.00~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $78.00~100.00

PartNumber:: MRF150

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack Yi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-17

From Other Seller

Part Number:MRF150
US $78.00 - 100.00
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MRF150 is designed primarily for linear large-signal output stages up to 150 MHz.

Parametrics

MRF150 absolute maximum ratings: (1)Drain–Source Voltage VDSS: 125 Vdc; (2)Drain–Gate Voltage VDGO: 125 Vdc; (3)Gate–Source Voltage VGS: ±40 Vdc; (4)Drain Current Continuous ID: 16 Adc; (5)Total Device Dissipation @ TC = 25℃, PD 300 Watts, Derate above 25℃, 1.71W/℃; (6)Storage Temperature Range Tstg: –65 to +150 ℃; (7)Operating Junction Temperature TJ: 200 ℃.

Features

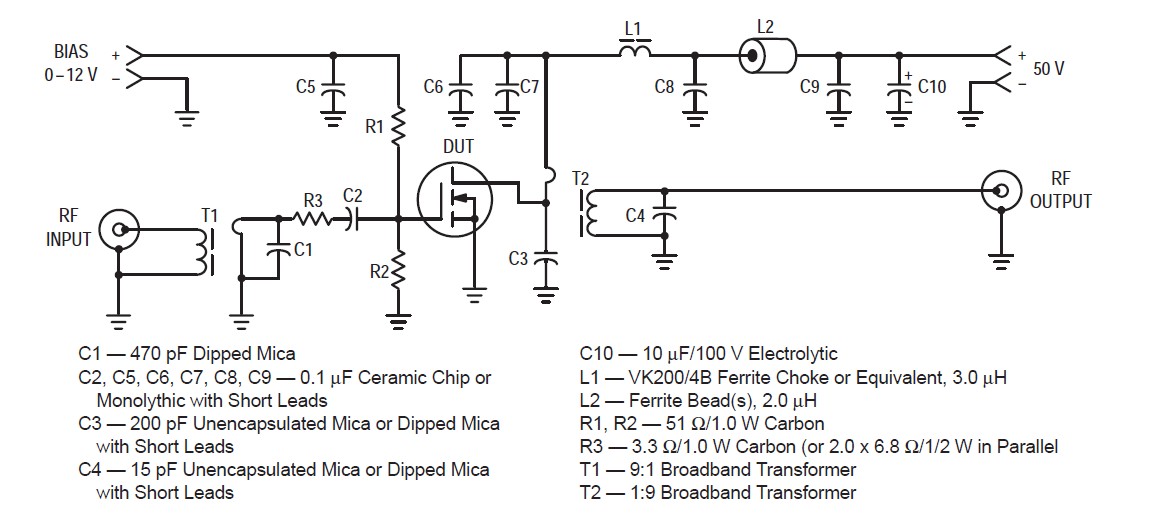

MRF150 features: (1)Superior high order IMD; (2)Specified 50V, 30MHz characteristics. Output power = 150 Watts. Power gain = 17 dB (Typ.); (3)Efficiency = 45% (Typ.); (4)100% tested for load mismatch at all phase angles.
