Product Summary
The SB20150CT is a 20A isolation schottky barrier rectifier.
Parametrics
SB20150CT absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:150V; (2)Maximum RMS Voltage:105V; (3)Maximum DC Blocking Voltage:150V; (4)Maximum Average Forward Current:20.0A; (5)Peak Forward Surge Current:200A; (6)Maximum Forward Voltage at 10.0A, per leg:0.92V; (7)Maximum DC Reverse Current at Rated DC Blocking Voltage:0.5mA; (8)Operating junction Temperature Range:-55℃ to +125℃; (9)Typical junction resistance:2.0℃/W; (10)storage temperature range:-50℃ to +150℃.
Features
SB20150CT features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)Flame Retardant Epoxy Molding Compound; (4)Exceeds environmental standards of MIL-S-19500/228; (5)Low power loss, high efficiency; (6)Low forwrd voltge, high current capability; (7)High surge capacity; (8)For use in low voltage,high frequency inverters free wheeling, and polarlity protection applications; (9)Pb free product are available : 99% Sn above can meet Rohs environment substance directive request.

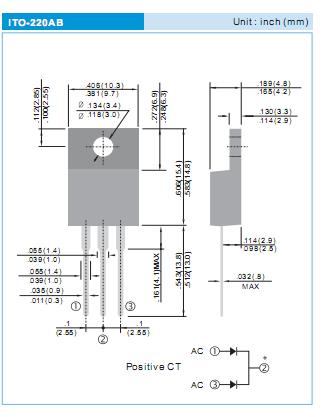

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SB20150CT |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
