Product Summary
The SB360 is a 3.0A schottky barrier rectifier.
Parametrics
SB360 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:60V; (2)Maximum RMS Voltage:42V; (3)Maximum DC Blocking Voltage:60V; (4)Maximum Average Forward Current:3.0A; (5)Peak Forward Surge Current:80A; (6)Maximum Forward Voltage at 3.0A, per leg:0.75V; (7)Maximum DC Reverse Current at Rated DC Blocking Voltage:0.5mA; (8)Operating junction Temperature Range:-55℃ to +125℃; (9)Typical junction resistance:20℃/W; (10)storage temperature range:-50℃ to +150℃.
Features
SB360 features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound; (2)Exceeds environmental standards of MIL-S-19500/228; (3)For use in low voltage,high frequency inverters, free wheeling, and polarity protection applications; (4)Pb free product are available : 99% Sn above can meet RoHS environment substance directive request.

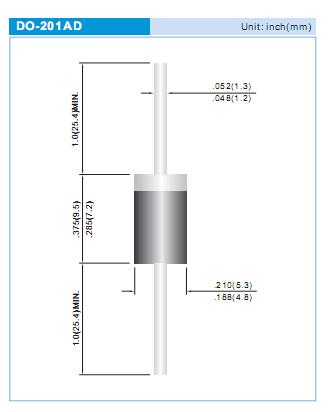

Diagrams
