Product Summary

The BAV21W is a 410mW surface mount switching diode.

Parametrics

BAV21W absolute maximum ratings: (1)marking code:A82; (2)reverse voltage:200V; (3)peak reverse voltage:250V; (4)rectified current:200mA; (5)peak forward surge current:4.0A; (6)power dissipation:410mW; (7)maximum forward voltage at 0.1A:1.0V; (8)typical junction capacitance:5.0pF; (9)maximum reverse recovery:50ns; (10)typical thermal resistance:450℃/W; (11)operating junction and storage temperature range:-55℃ to +150℃.

Features

BAV21W features: (1)Fast switching speed.; (2)Surface mount package Ideally Suited for Automatic insertion; (3)Electrically Identical to Standard JEDEC; (4)High Conductance; (5)In compliance with EU RoHS 2002/95/EC directives.

Diagrams

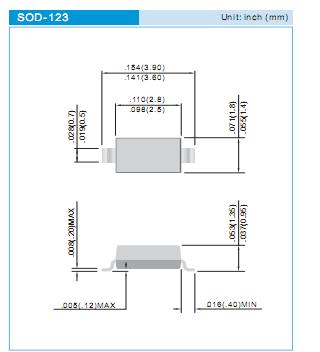

BAV21W package dimensions
