Product Summary
The FLM5964-18F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a 50 ohm system.
Parametrics
FLM5964-18F absolute maximum ratings: (1)Drain-Source Voltage: 15 V; (2)Gate-Source Voltage: -5 V; (3)Total Power Dissipation: 83.3 W; (4)Storage Temperature: -65 to +175 ℃; (5)Channel Temperature: 175 ℃.
Features
FLM5964-18F features: (1)High Output Power: P1dB=43.0dBm(Typ.); (2)High Gain: G1dB=10.0dB(Typ.); (3)High PAE: ηadd=37%(Typ.); (4)Low IM3 = -46dBc@Po = 32.0dBm; (5)Broad Band: 5.9~6.4GHz; (6)Impedance Matched Zin/Zout = 50Ω; (7)Hermetically Sealed Package.

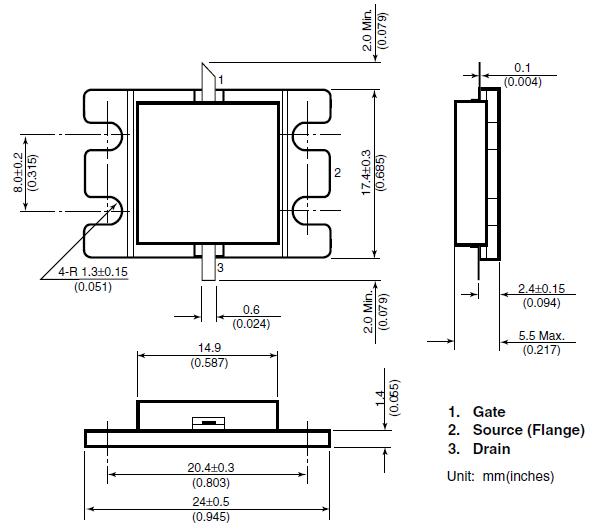

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FLM5964-18F |
Other |
|
Data Sheet |
Negotiable |
|
||||
