Product Summary

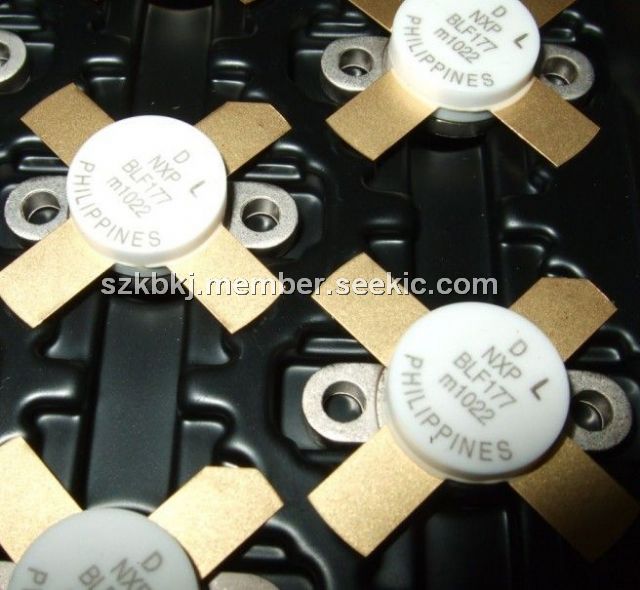

The BLF177 is a Silicon N-channel enhancement mode vertical D-MOS transistor encapsulated in a 4-lead, SOT121B flanged package, with a ceramic cap. All leads are isolated from the flange. The applications of the BLF177 include industrial and military applications in the HF/VHF frequency range.
Parametrics
BLF177 absolute maximum ratings: (1)drain-source voltage: 125 V; (2)VGS gate-source voltage: ±20 V; (3)ID drain current (DC): 16 A; (4)Ptot total power dissipation: 220 W at Tmb ≤ 25 ℃ ; (5)Tstg storage temperature: -65 to +150 ℃; (6)Tj junction temperature: 200 ℃.
Features
BLF177 features: (1)High power gain; (2)Low intermodulation distortion; (3)Easy power control; (4)Good thermal stability; (5)Withstands full load mismatch.

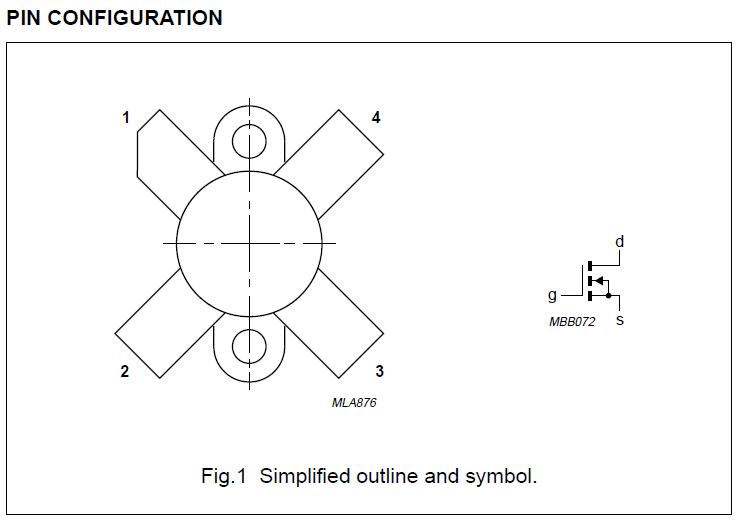

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BLF177 |
Advanced Semiconductor, Inc. |
Transistors RF MOSFET Power RF Transistor |
Data Sheet |
|
|
|||||||||||||
BLF177,112 |
NXP Semiconductors |
Transistors RF MOSFET Power RF DMOS 150W HF-VHF |
Data Sheet |
|
|
|||||||||||||
BLF177C |
NXP Semiconductors |
Transistors RF MOSFET Power VDMOS TNS |
Data Sheet |
Negotiable |
|
|||||||||||||
BLF177C,112 |
NXP Semiconductors |
Transistors RF MOSFET Power VDMOS TNS |
Data Sheet |
Negotiable |
|
|||||||||||||
BLF177CR |
NXP Semiconductors |
Transistors RF MOSFET Power VDMOS TNS |
Data Sheet |
Negotiable |
|
|||||||||||||
BLF177CR,112 |
NXP Semiconductors |
Transistors RF MOSFET Power VDMOS TNS |
Data Sheet |
Negotiable |
|
