Product Summary

The CLA4601-000 is a silicon limiter diode chip which provides passive receiver protection over a wide range of frequencies from 100 MHz to beyond 30 GHz. The CLA4601-000 utilizes Skyworks wellestablished silicon technology for high resistivity and tightly controlled thin base width PIN limiter diodes. Limiter circuits employing these devices will perform with strong limiting action and low loss.

Parametrics

CLA4601-000 absolute maximum ratings: (1)For CW signals: θ = θave; (2)For pulsed signals: θ = DF x θave + θ pulse (θp @1 μS x normalized θp ); (3)Operating temperature: -65 ℃ to +175 ℃; (4)Storage temperature: -65 ℃ to +200 ℃.

Features

CLA4601-000 features: (1)Established Skyworks limiter diode process; (2)High-power, mid-range and cleanup designs; (3)Low insertion loss (0.1 dB at 10 GHz); (4)Power handling to 66 dBm; (5)Tight control of basewidth; (6)Mesa and planar chip designs; (7)Available lead (Pb)-free, RoHS-compliant, and Green.

Diagrams

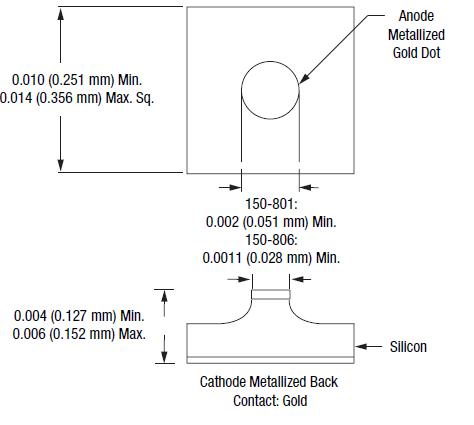

CLA4601-000 diagram
