Product Summary

The CLA4607-000 is a silicon limiter diode chip which provides passive receiver protection over a wide range of frequencies from 100 MHz to beyond 30 GHz. The CLA4607-000 utilizes Skyworks wellestablished silicon technology for high resistivity and tightly controlled thin base width PIN limiter diodes.

Parametrics

CLA4607-000 absolute maximum ratings: (1)For CW signals: θ = θave; (2)For pulsed signals: θ = DF x θave + θ pulse (θp @1 μS x normalized θp); (3)Operating temperature: -65 ℃ to +175 ℃; (4)Storage temperature: -65 ℃ to +200 ℃.

Features

CLA4607-000 features: (1)Established Skyworks limiter diode process; (2)High-power, mid-range and cleanup designs; (3)Low insertion loss (0.1 dB at 10 GHz); (4)Power handling to 66 dBm; (5)Tight control of basewidth; (6)Mesa and planar chip designs; (7)Available lead (Pb)-free, RoHS-compliant, and Green.

Diagrams

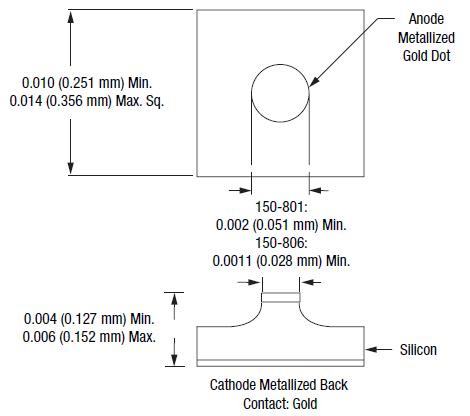

CLA4607-000 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CLA4607-000
CLA4607-000


DIODE LIMITER SILICON 120-180V

Data Sheet

0-50: $3.30
50-100: $3.00
100-500: $2.07
500-1000: $1.65
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CLA4601 Series
CLA4601 Series

Other


Data Sheet

Negotiable
CLA4601-000
CLA4601-000


DIODE LIMITER SILICON 15-30V

Data Sheet

0-100: $3.00
100-500: $2.07
CLA4602 Series
CLA4602 Series

Other


Data Sheet

Negotiable
CLA4602-000
CLA4602-000


DIODE LIMITER SILICON 15-30V

Data Sheet

0-50: $3.30
50-100: $3.00
100-500: $2.07
CLA4603 Series
CLA4603 Series

Other


Data Sheet

Negotiable
CLA4603-000
CLA4603-000


DIODE LIMITER SILICON 20-45V

Data Sheet

0-50: $3.30
50-100: $3.00
100-500: $2.07
