Product Summary

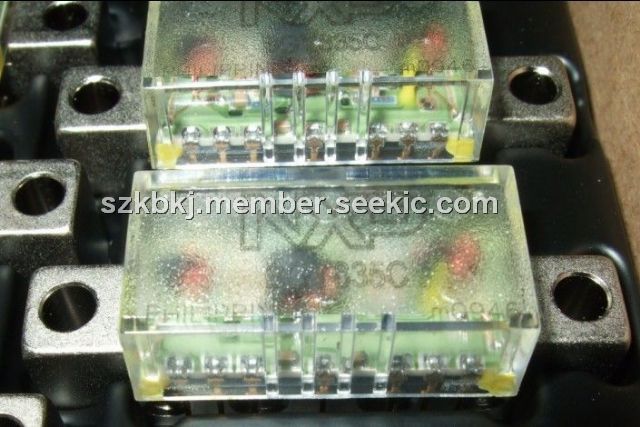

The BGY835C is a Hybrid high dynamic range amplifier module operating at a supply voltage of 24 V Direct Current (DC) in a SOT115J package. The module consists of two cascaded stages both in cascode configuration. The BGY835C is suitable for Single module line extender in CATV systems operating in the 40 MHz to 860 MHz frequency range.
Parametrics
BGY835C absolute maximum ratings: (1)VB, supply voltage: 25 V; (2)Vi, input voltage: 55 dBmV; (3)Tstg, storage temperature: -40 to +100℃; (4)Tmb, mounting base temperature: -20 to +100℃.
Features
BGY835C features: (1)Excellent linearity; (2)Extremely low noise; (3)High gain; (4)Excellent return loss properties.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BGY835C |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
BGY835C,112 |
NXP Semiconductors |
RF Amplifier RF Amp Module Single GP Amp 860MHz 7-Pin |
Data Sheet |
|
|
