Product Summary

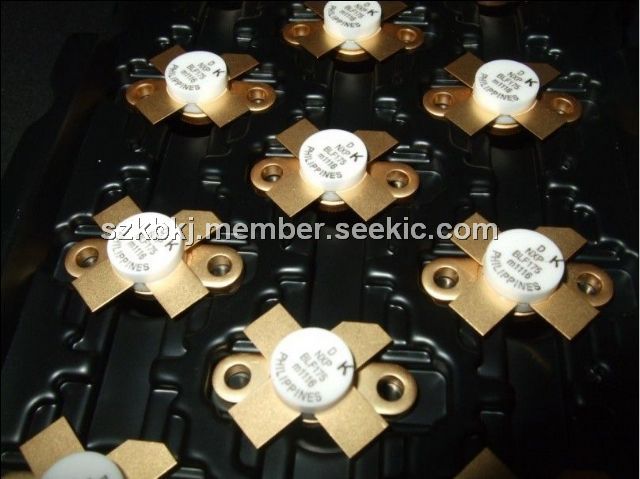

The BLF175 is a Silicon N-channel enhancement mode vertical D-MOS transistor designed for large signal amplifier applications in the HF/VHF frequency range. The BLF175 has a 4-lead, SOT123A flange package, with a ceramic cap. All leads are isolated from the flange.

Parametrics

BLF175 absolute maximum ratings: (1)drain-source voltage: 125 V; (2)gate-source voltage: 20 V; (3)DC drain current: 4 A; (4)total power dissipation: 68 W at Tmb ≤ 25 ℃; (5)storage temperature: -65 to +150 ℃; (6)junction temperature: 200 ℃.

Features

BLF175 features: (1)High power gain; (2)Low intermodulation distortion; (3)Easy power control; (4)Good thermal stability; (5)Withstands full load mismatch; (6)Gold metallization ensures excellent reliability.

Diagrams

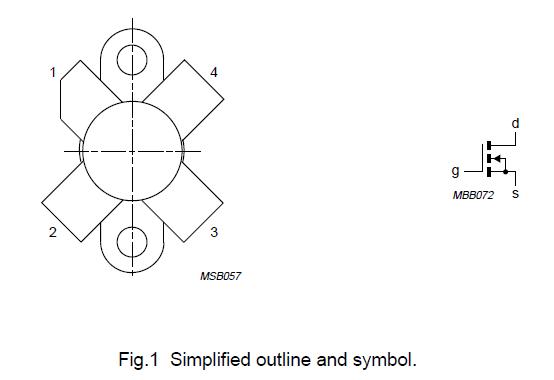

BLF175 pin configuration diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BLF175
BLF175

Other


Data Sheet

Negotiable
BLF175,112
BLF175,112

NXP Semiconductors

Transistors RF MOSFET Power RF DMOS 30W HF-VHF

Data Sheet

0-1: $25.74
1-25: $24.65
25-100: $23.64
100-250: $23.18
