Product Summary
The FLM5964-35F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a 50Ω system.
Parametrics
FLM5964-35F absolute maximum ratings: (1)Drain-Source Voltage: 15 V; (2)Gate-Source Voltage: -5 V; (3)Total Power Dissipation: 115 W; (4)Storage Temperature: -65 to +175 ℃; (5)Channel Temperature: 175 ℃.
Features
FLM5964-35F features: (1)High Output Power: P1dB=45.5dBm(Typ.); (2)High Gain: G1dB=9.0dB(Typ.); (3)High PAE: ηadd=36%(Typ.); (4)Broad Band: 5.9~6.4GHz; (5)Impedance Matched Zin/Zout = 50Ω; (6)Hermetically Sealed Package.

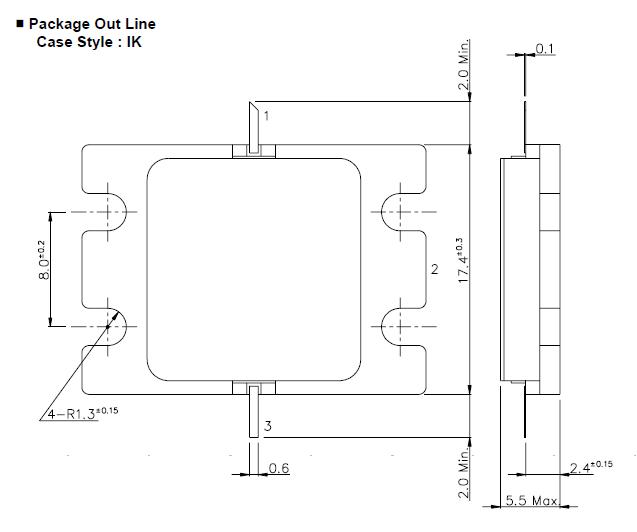

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
FLM5964-35F |
Other |
Data Sheet |
Negotiable |
|
||||||
