Product Summary
The HSDL3201021 is a 1.2 low power compliant 115.2 kb/s infrared transceiver. The HSDL3201021 is one of a new generation of low-cost Infrared (IR) transceiver modules from Agilent Technologies. It features the smallest footprint in the industry at 2.5 H x 8.0 W x 3.0 D mm. Although the supply voltage of the HSDL3201021 can range from 2.7 V to 3.6 V, the LED drive current is internally compensated to a constant 32 mA to assure that link distances meet the IrDA Data 1.2 (low power) physical layer specifications.
Parametrics
HSDL3201021 absolute maximum ratings: (1)Storage Temperature TS: -40 100℃; (2)Operating Temperature TA: -25 to 85℃; (3)LED Supply Voltage VVLED: -0.5 to 7 V; (4)Supply Voltage VCC: -0.5 to 7 V; (5)Input Voltage: TXD, SD VI 0: VCC + 0.5 V; (6)Output Voltage: RXD VO -0.5: VCC + 0.5 V.
Features
HSDL3201021 features: (1)Ultra Small Surface Mount Package; (2)Minimal Height: 2.5 mm; (3)Vcc from 2.7 to 3.6 Volts; (4)Withstands > 250 mVp-p Power Supply Ripple; (5)LED Supply Voltage can Range from 2.7 to 6.0 Volts; (6)Low Shutdown Current. 20 nA Typical; (7)Temperature Range: -25 to 85℃; (8)32 mA LED Drive Current; (9)Integrated EMI Shield; (10)IEC825-1 Class 1 Eye Safe; (11)Edge Detection Input.

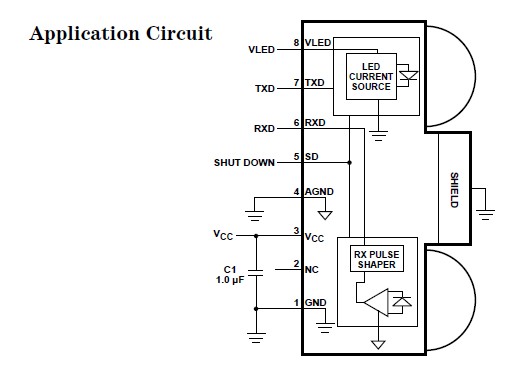

Diagrams
 |
