Product Summary

The DS-117 is a Power Divider. It is ideally a lossless reciprocal device which can also perform vector summation of two or more signals and thus is sometimes called a power combiner or summer.

Parametrics

DS-117 specifications: (1)Insertion Loss: 0.75 dB; (2)Isolation: 30 dB; (3)Amplitude Balance: 0.25 dB; (4)Phase Balance: 3 °; (5)VSWR: 1.3:1 ratio.

Features

DS-117 features: (1)Low Loss: 0.5 dB Typical; (2)Impedance: 50 Ohms Nominal; (3)Power Rating: 1W Max; (4)Internal Load Dissipation: 0.05 W Max; (5)Flatpack and Connectorized Packages; (6)MIL-STD-202 Screening Available.

Diagrams

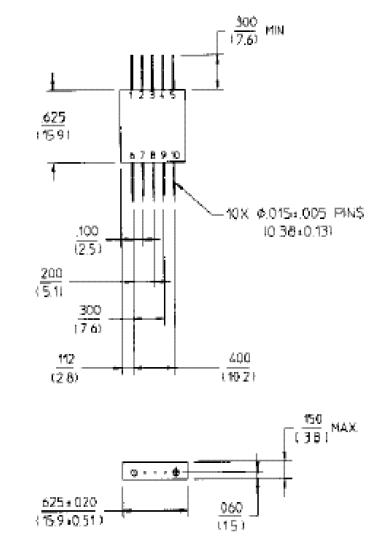

DS-117 diagram
