Product Summary

The KBL406 is a 4.0A in-line miniature single phase silicon bridge rectifier.

Parametrics

KBL406 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:600V; (2)Maximum RMS Voltage:420V; (3)Maximum DC Blocking Voltage:600V; (4)Maximum Average Forward Current:4.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):200A; (6)Typical thermal resistance:19℃/W; (7)Maximum Forward Voltage at 4.0A, per element:1.1V; (8)Maximum DC Reverse Current at TJ=25℃:10uA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.

Features

KBL406 features: (1)Plastic material has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)Ideal for printed circuit board; (4)Reliable low cost construction utilizing molded plastic technique; (5)Surge overload rating: 200 Amperes peak; (6)Pb free product are available: 99% Sn above can meet RoHS environment substance directive request.

Diagrams

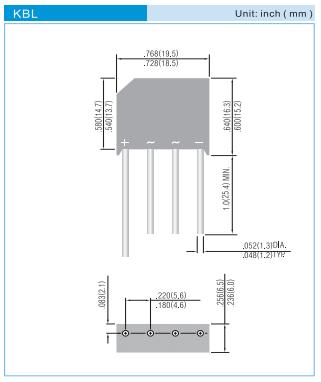

KBL406 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
KBL406-G
KBL406-G


RECTIFIER BRIDGE 4A 600V KBL

Data Sheet

0-500: $0.26
KBL406G
KBL406G

GeneSiC Semiconductor

Bridge Rectifiers 600V 4A Bridge Rectifier

Data Sheet

0-700: $0.23
700-1000: $0.23
1000-2000: $0.22
KBL406
KBL406

Taiwan Semiconductor

Bridge Rectifiers 4.0 Amp 800 Volt 200 Amp IFSM

Data Sheet

Negotiable
