Product Summary

The SKY65014-70LF is a general-purpose, broadband amplifier fabricated from Skyworks InGaP HBT process and packaged in a SOT-89 package. The SKY65014-70LF’s input and output impedances are 50Ω, which allows these amplifiers to be cascaded without external impedance matching networks. The typical -3 dB band-width of the SKY65014-70LF is LF–6 GHz. The applications of the device include Wireless infrastructure: WLAN, HLAN, DBS, broadband, cellular base stations, Test instrumentation and CATV.

Parametrics

SKY65014-70LF absolute maximum ratings: (1)RF input power: 15 dBm; (2)Supply voltage: 5 V; (3)Supply current: 120 mA; (4)Power dissipation @ T = 25℃: 600 mW; (5)Operating temperature: -40 to +85℃; (6)Storage temperature: -65 to +125℃.

Features

SKY65014-70LF features: (1)Broadband: LF–6 GHz; (2)Small signal gain: 16 dB typ. @ 2 GHz; (3)High output 3rd order intercept: 36 dBm typ; (4)0P1 dB: 18 dBm typ. @ 2 GHz; (5)Input and output impedance: 50Ω nominal; (6)Single, positive DC supply voltage; (7)SOT-89 package; (8)Available lead (Pb)-free, RoHS compliant and Green MSL-1 @ 260℃ per JEDEC J-STD-020.

Diagrams

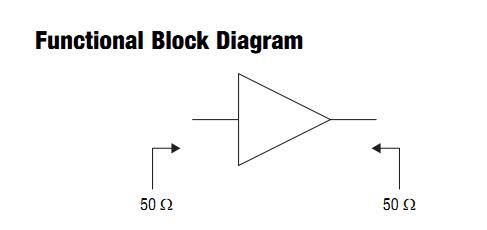

SKY65014-70LF functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SKY65014-70LF
SKY65014-70LF
Skyworks Solutions, Inc.
RF Amplifier .1-6.0GHz InGaP HBT Sm Sig Gain 16dB
Data Sheet
0-1: $0.84
1-50: $0.81
50-100: $0.76
100-500: $0.69
