Product Summary
The SB1060CT is a 10A schottky barrier rectifier.
Parametrics
SB1060CT absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:60V; (2)Maximum RMS Voltage:42V; (3)Maximum DC Blocking Voltage:60V; (4)Maximum Average Forward Current:10A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):150A; (6)Typical thermal resistance:3.0℃/W; (7)Maximum Forward Voltage at 5A, per element:0.75V; (8)Maximum DC Reverse Current at TJ=25℃:0.2mA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.
Features
SB1060CT features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)Flame Retardant Epoxy Molding Compound; (4)Exceeds environmental standards of MIL-S-19500/228; (5)Low power loss, high efficiency; (6)Low forward voltage, high current capability; (7)High surge capacity; (8)For use in low voltage, high frequency inverters free wheeling, and polarlity protection applications; (9)In compliance with EU RoHS 2002/95/EC directives.

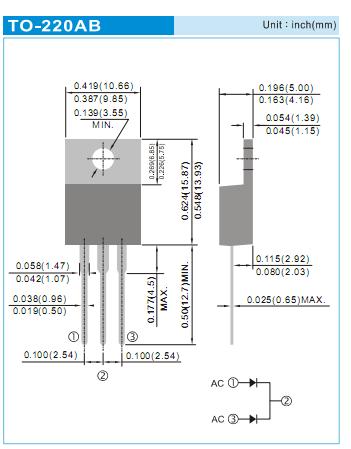

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
SB1060CT |
Other |
Data Sheet |
Negotiable |
|
||||||
