MGFC45B3436B

GaAs power FET, impedance-matched, module, -15 V, 78 W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $60.00~90.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $60.00~90.00

PartNumber:: MGFC45B3436B

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack Yi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-13

From Other Seller

Part Number:MGFC45B3436B
US $60.00 - 90.00
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

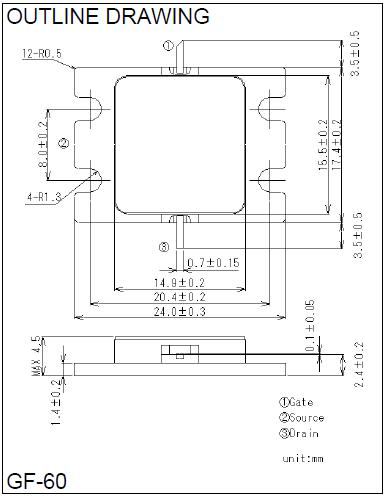

The MGFC45B3436B is an internally impedance-matched GaAs power FET which is especially designed for use in 3.4 - 3.6 GHz band amplifiers. The hermetically sealed metal-ceramic package guarantees high reliability.

Parametrics

MGFC45B3436B absolute maximum ratings: (1)Gate to drain voltage: -15 V; (2)Gate to source voltage -10 V; (3)Maximum drain current 10 A; (4)Total power dissipation: 78 W; (5)Channel temperature: 175 deg.C; (6)Storage temperature: -65 / +175 deg.C.

Features

MGFC45B3436B features: (1)Class AB operation; (2)Internally matched to 50(ohm) system; (3)High output power: Po(SAT) = 30W (TYP.) @ f=3.4 - 3.6 GHz; (4)High power gain: GLP = 11 dB (TYP.) @ f=3.4 - 3.6 GHz; (5)Distortion: ACP = -45dBc (TYP.) @ f=3.4 - 3.6 GHz.
