Product Summary
The SB20100FCT is a 20A isolation schottky barrier rectifier.
Parametrics
SB20100FCT absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:100V; (2)Maximum RMS Voltage:70V; (3)Maximum DC Blocking Voltage:100V; (4)Maximum Average Forward Current:20.0A; (5)Peak Forward Surge Current:150A; (6)Maximum Forward Voltage at 10.0A, per leg:0.85V; (7)Maximum DC Reverse Current at Rated DC Blocking Voltage:0.5mA; (8)Operating and Storage Temperature Range:-55℃ to +125℃; (9)Typical junction resistance:100℃/W.
Features
SB20100FCT features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)Flame Retardant Epoxy Molding Compound; (4)Exceeds environmental standards of MIL-S-19500/228; (5)Low power loss, high efficiency; (6)Low forwrd voltge, high current capability; (7)High surge capacity; (8)For use in low voltage,high frequency inverters free wheeling, and polarlity protection applications.

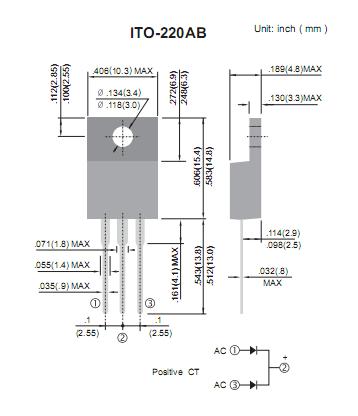

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SB20100FCT |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
