Product Summary
The SB260E is a 2.0A schottky barrier rectifier.
Parametrics
SB260E absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:60V; (2)Maximum RMS Voltage:42V; (3)Maximum DC Blocking Voltage:60V; (4)Maximum Average Forward Current:2.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):50A; (6)Typical thermal resistance:35℃/W; (7)Maximum Forward Voltage at 2.0A:0.7V; (8)Maximum DC Reverse Current at TJ=25℃:0.1mA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.
Features
SB260E features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-O utilizing; (3)Flame Retardant Epoxy Molding Compound; (4)Exceeds environmental standards of MIL-S-19500/228; (5)For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications; (6)In compliance with EU RoHS 2002/95/EC directives; (7)ESD Passed devices: Air mode 15KV, human body mode 8KV.

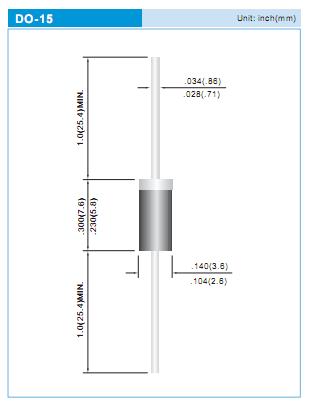

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SB260E |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
SB260E-G |
Comchip Technology |
Schottky (Diodes & Rectifiers) Low VF ESD 2A 60V Schottky Rectifier |
Data Sheet |
|
|
