Product Summary

The SC02201518 is a MIS chip capacitor. Skyworks Metal Insulator Silicon (MIS) chip capacitor SC02201518 is available in a wide range of sizes and capacitance values. The SC02201518 has a dielectric composed of thermally grown silicon dioxide over which a layer of silicon nitride is deposited. This dielectric has a low temperature coefficient of capacitance and very high insulation resistance.

Parametrics

SC02201518 absolute maximum ratings: (1)Dielectric withstand voltage: 100V; (2)Operating temperature, TOP: –65 to +200℃; (3)Storage temperature, TSTG: –65 to +200℃.

Features

SC02201518 features: (1)Readily available from stock; (2)High reliability silicon oxide-nitride dielectric; (3)Low loss: typically 0.04 dB in a 50 system; (4)Operation through 26 GHz; (5)Wide temperature operation.

Diagrams

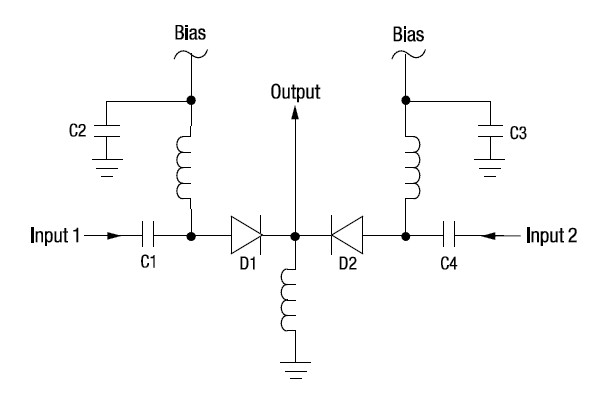

SC02201518 Typical MIS Capacitor Application Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SC02201518
SC02201518


CAP THIN FILM 22PF 100V SMD

Data Sheet

0-100: $0.76
100-500: $0.64
500-1000: $0.55
1000-2500: $0.46
