Product Summary

The SR34 is a 3.0A mini surface mount schottky barrier rectifier.

Parametrics

SR34 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:40V; (2)Maximum RMS Voltage:28V; (3)Maximum DC Blocking Voltage:40V; (4)Maximum Average Forward Current:3.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):80A; (6)Typical thermal resistance:20℃/W; (7)Maximum Forward Voltage at 3.0A, per element:0.5V; (8)Maximum DC Reverse Current at TJ=25℃:0.2mA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.

Features

SR34 features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)For surface mounted applications; (4)Low profile package; (5)Built-in strain relief; (6)Metal to silicon rectifier, majority carrier conduction; (7)Low power loss, high efficiency; (8)High surge capacity; (9)For use in low voltage high frequency inverters, free wheeling, and polarity protection applications; (10)In compliance with EU RoHS 2002/95/EC directives.

Diagrams

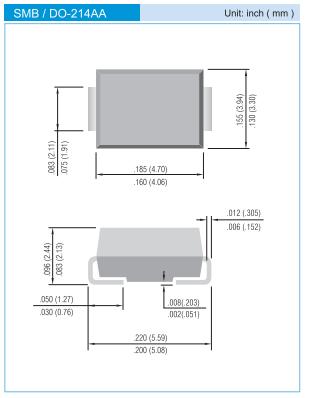

SR34 package dimensions
