Product Summary

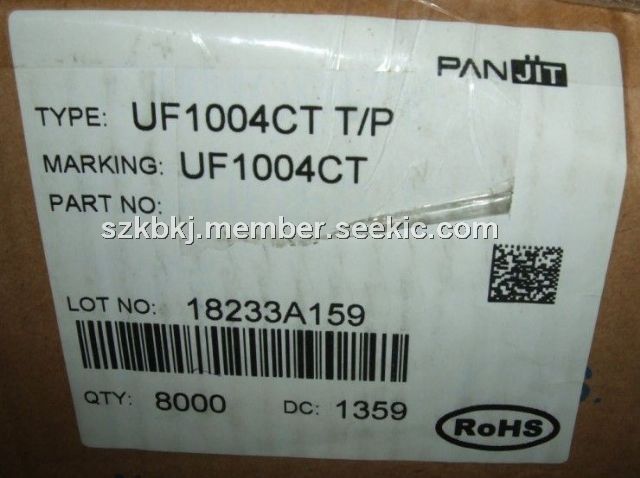

The UF1004CT is a 10.0A ultrafast recovery rectifier.
Parametrics
UF1004CT absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:400V; (2)Maximum RMS Voltage:280V; (3)Maximum DC Blocking Voltage:400V; (4)Maximum Average Forward Current:10A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):125A; (6)Typical thermal resistance:2℃/W; (7)Maximum Forward Voltage at 5.0A, per element:1.30V; (8)Maximum DC Reverse Current at TJ=25℃:1.0uA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.
Features
UF1004CT features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-O utilizing; (3)Flame Retardant Epoxy Molding Compound; (4)Exceeds environmental standards of MIL-S-19500/228; (5)Low power loss, high efficiency; (6)Low forwrd voltge, high current capability; (7)High surge capacity; (8)Ultra fast recovery time, high voltage; (9)In compliance with EU RoHS 2002/95/EC directives.

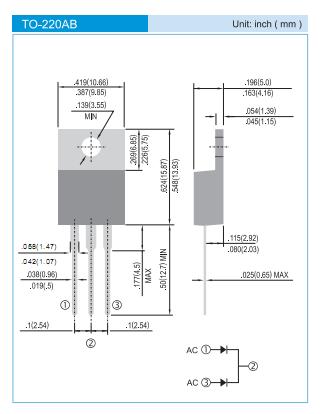

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UF1004CT |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
