Product Summary

The 1N4007 is a 1.0A plastic silicon rectifier.

Parametrics

1N4007 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:1000V; (2)Maximum RMS Voltage:700V; (3)Maximum DC Blocking Voltage:1000V; (4)Maximum Average Forward Current:1.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):30A; (6)Typical thermal resistance:50℃/W; (7)Maximum Forward Voltage at 1.0A, per element:1.1V; (8)Maximum DC Reverse Current at TJ=25℃:5.0uA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.

Features

1N4007 features: (1)Low forward voltage drop; (2)High current capability; (3)High reliability; (4)High surge current capability; (5)Exceeds environmental standards of MIL-S-19500/228.

Diagrams

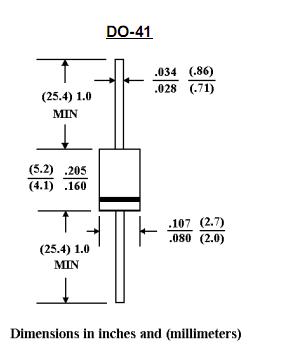

1N4007 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1N4007
1N4007
Fairchild Semiconductor
Rectifiers Vr/1000V Io/1A
Data Sheet
0-1: $0.08
1-25: $0.08
25-100: $0.05
100-250: $0.03
