Product Summary

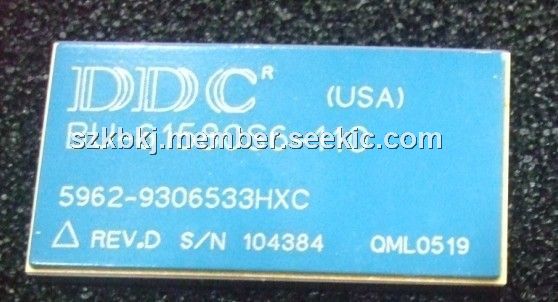

The BU-61580S6-110 Advanced communication engine terminal comprises a complete intergrated interface between a host processor and a MIL-STD-1553 A and B or STANAG bus.

Parametrics

BU-61580S6-110 absolute maximum ratings: (1)supply voltage: -0.3 to 7.0 V at logic +5V, -0.3 to 7.0 V at transceiver +5V; (2)differential input capacitance: 10 pF; (3)differential output voltage: 6 to 9 Vp-p; (4)transformer coupled across 70 ohms: 20 to 27 Vp-p.

Features

BU-61580S6-110 features: (1)fully integrated bus interface terminal; (2)flexible processor/memory interface; (3)standard 4Kx16 RAM and optional 12kx16 or 8Kx17 RAM available; (4)optional RAM parity generation/checking; (5)automatic BC retries; (6)programmable BC gap times; (7)BC frame auti-repeat; (8)flexible RT data buffering; (9)programmable illegalization.

Diagrams

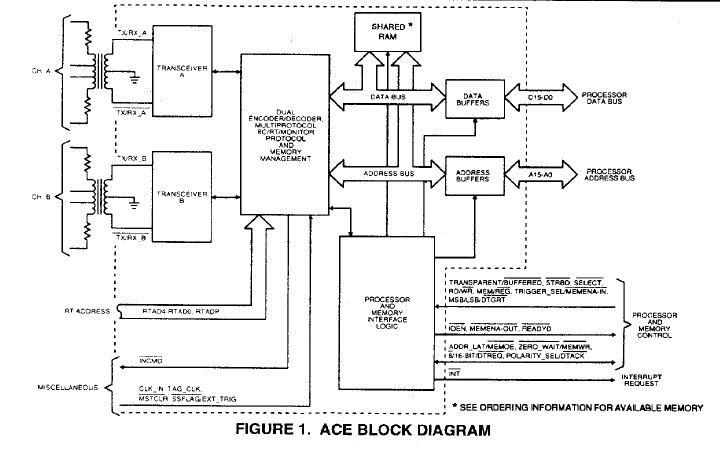

BU-61580S6-110 block diagram
