Product Summary

Skyworks’ CLA series of silicon limiter diode chips provides passive receiver protection over a wide range of frequencies from 100 MHz to beyond 30 GHz. CLA4604-000 utilize Skyworks’ well established silicon technology for high resistivity and tightly controlled thin base width PIN limiter diodes. Limiter circuits employing CLA4604-000 will perform with strong limiting action and low loss.

Parametrics

CLA4604-000 absolute maximum ratings: (1)Power Dissipation: 175-Tamb; (2)For CW Signals: θ = θave; (3)For Pulsed Signals: θ = DF x θave + θ pulse (θp @1 μS x Normalized θp from Figure 2); (4)Operating Temperature: -65℃ to +175℃; (5)Storage Temperature: -65℃ to +200℃.

Features

CLA4604-000 features: (1)Established Skyworks Limiter Diode Process; (2)High Power, Mid-range and Clean-up Designs; (3)Low Insertion Loss (0.1 dB at 10 GHz); (4)Power Handling to 66 dBm; (5)Tight Control of Basewidth; (6)Mesa and Planar Chip Designs.

Diagrams

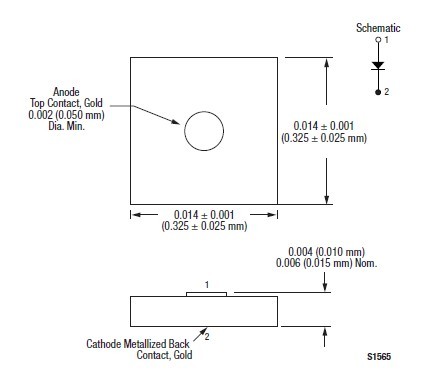

CLA4604-000 Packages

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CLA4604-000
CLA4604-000


DIODE LIMITER SILICON 30-60V

Data Sheet

0-50: $3.30
50-100: $3.00
100-500: $2.07
