Product Summary

The EMM5078ZV is a C-band power amplifier MMIC. The EMM5078ZV is a wide band power amplifier MMIC that contains a three stage amplifier, internally matched, for standard communications band in 3.4 to 8.5GHz frequency range. SEDIs stringent Quality Assurance Program assures the highest reliability and consistent performance.

Parametrics

EMM5078ZV absolute maximum ratings: (1)Drain-Source Voltage VDD: 10V; (2)Gate-Source Voltage VGG: -3V; (3)Input Power Pin: 22dBm; (4)Storage Temperature Tstg: -55 to +125℃.

Features

EMM5078ZV features: (1)Output Power; P1dB = 26 dBm (Typ.); (2)High Gain; GL = 30 dB(Typ.); (3)Wide Frequency Band ; 3.4 ?8.5 GHz; (4)Impedance Matched Zin/Zout = 50 QFN 24pin Plastic Mold Package(ZV).

Diagrams

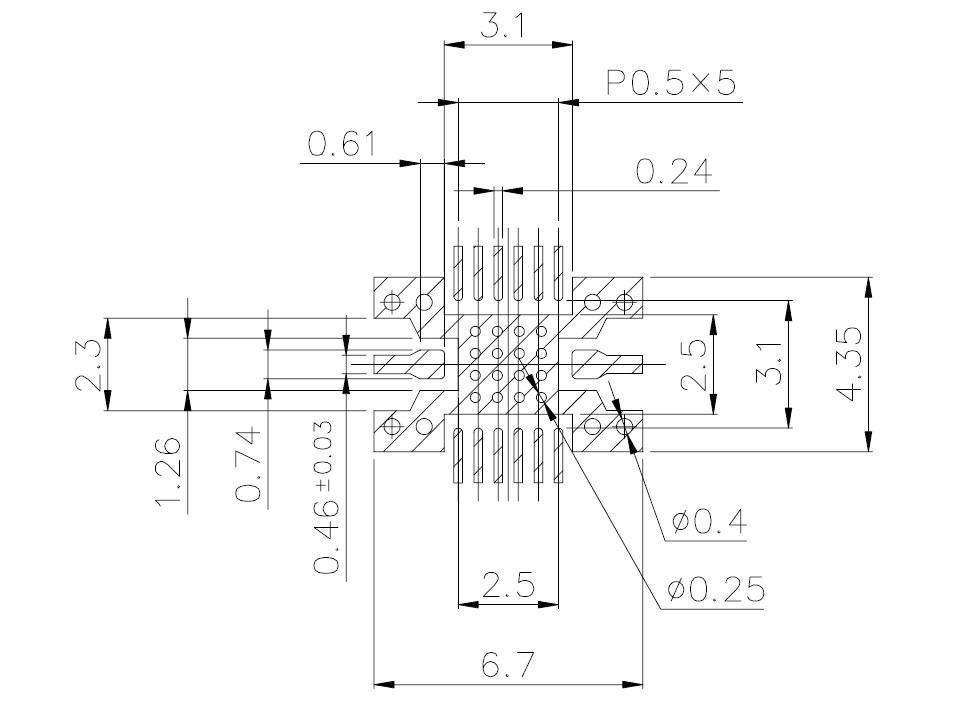

EMM5078ZV PCB Pads and Solder-resist Pattern
