Product Summary
The ER1602CT is a 16A super-fast glass passivated rectifier.
Parametrics
ER1602CT absolute maximum ratings: (1)Forward Voltage @IF = 8.0A VFM 0.95: 1.7 V; (2)Peak Reverse Current @TA = 25℃: 10μA; (3)At Rated DC Blocking Voltage @TA = 100℃: 500μA; (4)Reverse Recovery Time trr: 35 to 50 nS; (5)Typical Junction Capacitance Cj: 80 to 60 pF; (6)Operating and Storage Temperature Range Tj, TSTG: -65 to +150℃; (7)Average Rectified Output Current @TC = 105℃ IO: 16 A.
Features
ER1602CT features: (1)Glass Passivated Die Construction; (2)Super-Fast Switching for High Efficiency; (3)High Current Capability; (4)Low Reverse Leakage Current; (5)High Surge Current Capability; (6)Plastic Material has UL Flammability Classification 94V-O.

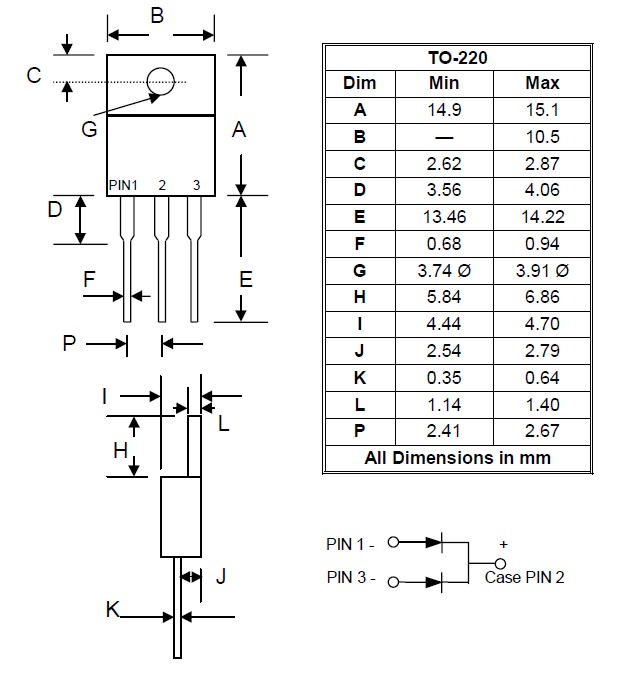

Diagrams
