Product Summary
The ER1604FCT is a 16A glass passivated dual superfast rectifier.
Parametrics
ER1604FCT absolute maximum ratings: (1)Average Rectified Output Current, @TC = 105℃ IO: 16 A; (2)Non-Repetitive Peak Forward Surge IFSM: 125 A; (3)Forward Voltage @IF = 8.0A VFM: 1.7 V; (4)Peak Reverse Current @TA = 25℃: 10μA; (5)At Rated DC Blocking Voltage @TA = 125℃: 500μA; (6)Reverse Recovery Time trr: 50 nS; (7)Typical Junction Capacitance Cj: 60 pF; (8)Operating and Storage Temperature Range Tj, TSTG: -65 to +150℃.
Features
ER1604FCT features: (1)Glass Passivated Die Construction; (2)Super-Fast Switching; (3)Low Forward Voltage Drop; (4)Low Reverse Leakage Current; (5)High Surge Current Capability; (6)Plastic Material has UL Flammability Classification 94V-O.

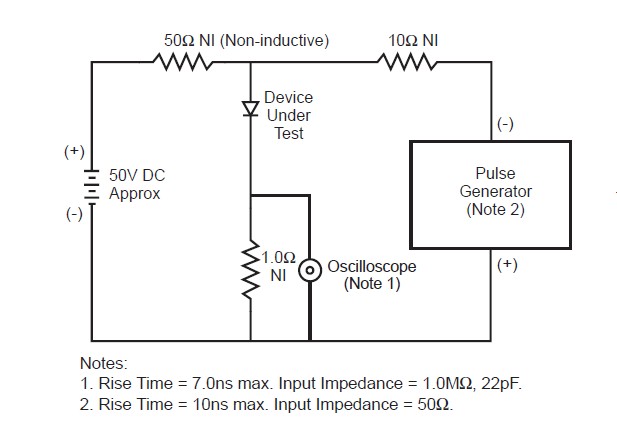

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ER1604FCT |
Other |
|
Data Sheet |
Negotiable |
|
||||
