Product Summary

The ER2G is a 2.0A surface mount rectifier.

Parametrics

ER2G absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:400V; (2)Maximum RMS Voltage:280V; (3)Maximum DC Blocking Voltage:400V; (4)Maximum Average Forward Current:2.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):50A; (6)Typical thermal resistance:20℃/W; (7)Maximum Forward Voltage at 2.0A, per element:1.25V; (8)Maximum DC Reverse Current at TJ=25℃:1.0uA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.

Features

ER2G features: (1)For surface mounted applications; (2)High temperature metallurgically bonded-no compression contacts as found in other diode-constructed rectifiers; (3)Glass passivated junction; (4)Built-in strain relief; (5)Easy pick and place; (6)Plastic package has Underwriters Laboratory Flammability Classification 94V-O; (7)In compliance with EU RoHS 2002/95/EC directives.

Diagrams

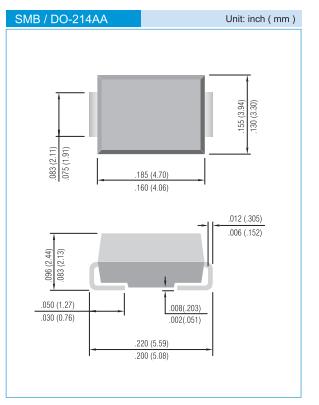

ER2G package dimensions
