Product Summary
The ER506 is a superfast recovery rectifier.
Parametrics
ER506 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:600V; (2)Maximum RMS Voltage:420V; (3)Maximum DC Blocking Voltage:600V; (4)Maximum Average Forward Current:5.0A; (5)Peak Forward Surge Current:150A; (6)Maximum Forward Voltage at 2.0A DC:1.7V; (7)Maximum DC Reverse Current at Rated DC Blocking Voltage:5.0uA; (8)Typical Junction capacitance:65pF; (9)Operating and Storage Temperature Range:-55℃ to +150℃; (10)Typical junction resistance:20℃/W.
Features
ER506 features: (1)Superfast recovery times-epitaxial construction; (2)Low forward voltage, high current capability; (3)Exceeds environmental standards of MIL-S-19500/228; (4)Hermetically sealed; (5)Low leakage; (6)High surge capability; (7)Plastic package has Underwriters Laboratories; (8)Flammability Classification 94V-O utilizing; (9)Flame Retardant Epoxy Molding Compound; (10)Both normal and Pb free product are available:Normal: 80 to 95% Sn, 5 to 20% Pb, Pb free: 98.5% Sn above.

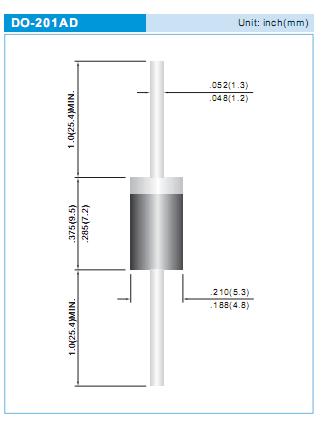

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() ER506 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
