Product Summary

The MBR30100PT is a 30A schottky barrier rectifier.

Parametrics

MBR30100PT absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:100V; (2)Maximum RMS Voltage:70V; (3)Maximum DC Blocking Voltage:100V; (4)Maximum Average Forward Current:30A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):275A; (6)Typical thermal resistance:1.4℃/W; (7)Maximum Forward Voltage at 15A, per element:0.80V; (8)Maximum DC Reverse Current at TJ=25℃:0.05mA; (9)Operating Junction and Storage Temperature Range:-65℃ to +175℃.

Features

MBR30100PT features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)Flame Retardant Epoxy Molding Compound; (4)Metal silicon junction, majority carrier conduction; (5)Low power loss, high efficiency; (6)High current capability; (7)Guardring for overvoltage protection; (8)For use in low voltage,high frequency inverters free wheeling, and polarlity protection applications; (9)In compliance with EU RoHS 2002/95/EC directives.

Diagrams

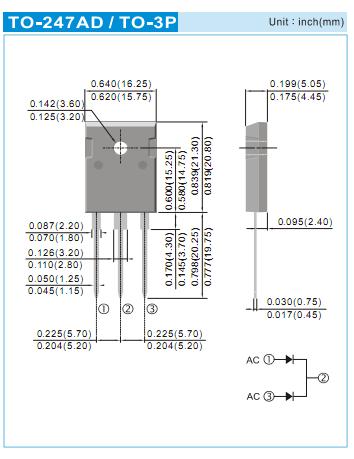

MBR30100PT package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MBR30100PT
MBR30100PT
Taiwan Semiconductor
Schottky (Diodes & Rectifiers) 30 Amp 100 Volt Dual
Data Sheet
0-900: $0.81
900-1800: $0.67
1800-2700: $0.58
2700-5400: $0.52
