Product Summary
The SC01001518 is a MIS chip capacitor. Skyworks Metal Insulator Silicon (MIS) chip capacitor SC01001518 is available in a wide range of sizes and capacitance values. The SC01001518 has a dielectric composed of thermally grown silicon dioxide over which a layer of silicon nitride is deposited. This dielectric has a low temperature coefficient of capacitance and very high insulation resistance.
Parametrics
SC01001518 absolute maximum ratings: (1)Dielectric withstand voltage: 100V; (2)Operating temperature, TOP: –65 to +200℃; (3)Storage temperature, TSTG: –65 to +200℃.
Features
SC01001518 features: (1)Readily available from stock; (2)High reliability silicon oxide-nitride dielectric; (3)Low loss: typically 0.04 dB in a 50 system; (4)Operation through 26 GHz; (5)Wide temperature operation.

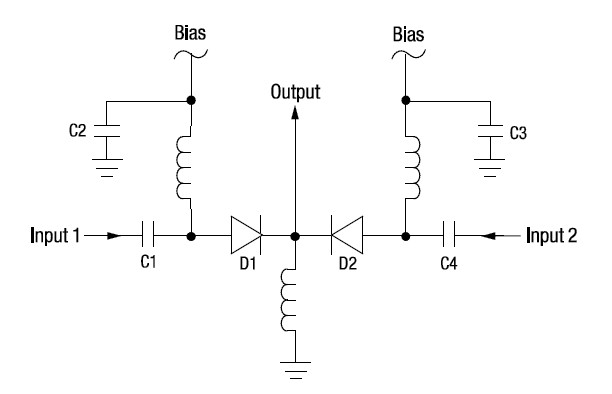

Diagrams
