Product Summary
The SC04701518 is a MIS silicon chip capacitor. The metal-insulator-semiconductor (MIS) chip capacitor SC04701518 is ideally suited for use as DC blocks in chip-and-wire hybrid circuits. The SC04701518 is available with capacitance values from 0.8 to 1000 pF and are useful from VHF to millimeter wave bands. Skyworks family of MIS chip capacitor utilizes Skyworks well established silicon technology and tightly controlled wafer processing to produce capacitor with excellent insertion loss and consistent capacitance.
Parametrics
SC04701518 absolute maximum ratings: (1)Operating temperature range (TOP): -65℃ to +200℃; (2)Storage temperature range (TSTG): -65℃ to +200℃; (3)Dielectric withstanding voltage: 100 V.
Features
SC04701518 features: (1)Readily available from stock; (2)High reliability silicon oxide nitride dielectric; (3)Low loss typically 0.04 dB in a 50 W system; (4)Operation through 26 GHz; (5)Wide temperature operation.

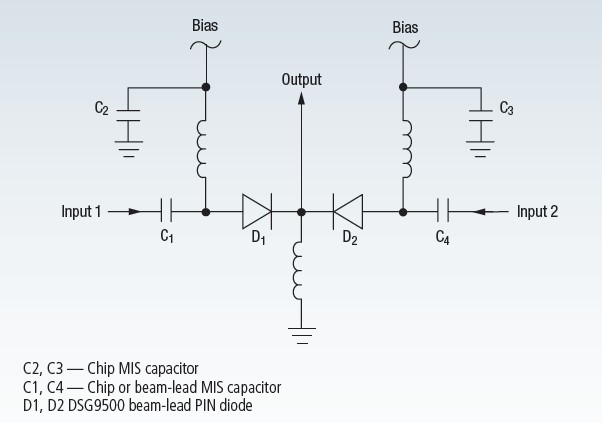

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SC04701518 |
|
CAP THIN FILM 47PF 100V SMD |
Data Sheet |
|
|
||||||||||||
