Product Summary
The SS14W is a 1.0A surface mount schottky barrier rectifier.
Parametrics
SS14W absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:40V; (2)Maximum RMS Voltage:28V; (3)Maximum DC Blocking Voltage:40V; (4)Maximum Average Forward Current:1.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):30A; (6)Typical thermal resistance:28℃/W; (7)Maximum Forward Voltage at 1.0A, per element:1.1V; (8)Maximum DC Reverse Current at TJ=25℃:0.5mA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.
Features
SS14W features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)For surface mounted applications; (4)Low profile package; (5)Built-in strain relief; (6)Metal to silicon rectifier. majority carrier conduction; (7)Low power loss, high efficiency; (8)High surge capacity; (9)High current capacity, low VF; (10)For use in low voltage high frequency inverters, free wheeling, and polarity protection applications; (11)In compliance with EU RoHS 2002/95/EC directives.

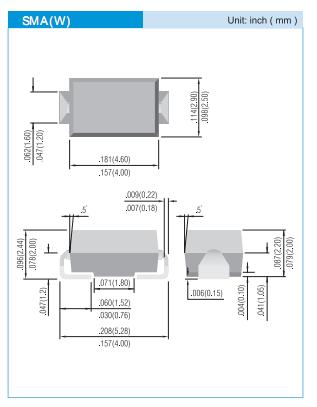

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

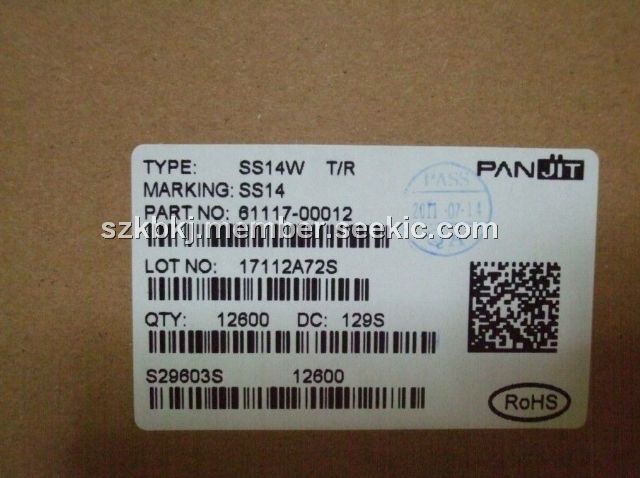

SS14W |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
SS14 |
Fairchild Semiconductor |
Schottky (Diodes & Rectifiers) SMA 40V 1.0A |
Data Sheet |
|
|
|||||||||||||
SS14 F3 |
Taiwan Semiconductor |
Schottky (Diodes & Rectifiers) 1A,40V, SMD SCHOTTKY RECT |
Data Sheet |
|
|
|||||||||||||
SS14/1 |
DIODE SCHOTTKY 1A 40V SMA |
Data Sheet |
Negotiable |
|
||||||||||||||
SS14/11T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 40 Volt 1.0 Amp 40 Amp IFSM |
Data Sheet |
Negotiable |
|
|||||||||||||
SS14/13T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 40 Volt 1.0 Amp 40 Amp IFSM |
Data Sheet |
Negotiable |
|
|||||||||||||
SS14/1T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 40 Volt 1.0 Amp 40 Amp IFSM |
Data Sheet |
Negotiable |
|
