Product Summary

The TB10S is a micro surface mount glass passivated single phase bridge rectifier.

Parametrics

TB10S absolute maximum ratings: (1)I 2 t Rating for fusing (t<8.3ms) I 2 t - 3.735 A2S; (2)Operating Junction Temperature TJ - 150 ℃; (3)Storage Temperature TSTG: -55 to +150 ℃; (4)Average Rectified Forward Current I O: 1.0 A; (5)Peak Surge Forward Current I FSM: 30 A.

Features

TB10S features: (1)Glass passivated chip junciton; (2)Ideally Suited for Automatic Assembly; (3)Save space on printed circuit boards; (4)Body Thick Very Thin <1.5mm; (5)Low Forward Voltage Drop; (6)Surge Overload Rating to 30A peak; (7)In compliance with EU RoHS 2002/95/EC directives; (8)Plastic Material:UL Flammability Classification Rating 94V-0.

Diagrams

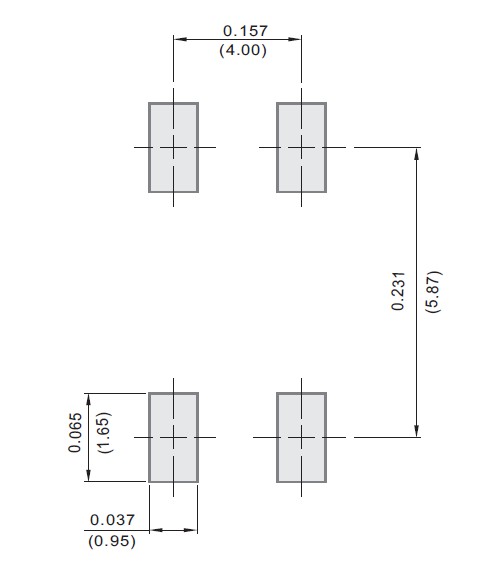

TB10S mounting pad layout

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TB10S-G
TB10S-G

DIODE BRIDGE GPP 0.8A 100V TBS
Data Sheet
0-1500: $0.10
