Product Summary
The B10S is a mini surface mount glass passivated single-phase bridge rectifier.
Parametrics
B10S absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:1000V; (2)Maximum RMS Bridge Input Voltage:700V; (3)Maximum DC Blocking Voltage:1000V; (4)Maximum Average Forward Current:TA=40℃:0.5A, TA=25℃:0.8A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):30A; (6)I2t Rating for fusing ( t<8.35ms):3.735A2s; (7)Maximum Forward Voltage Drop per Bridge Element at 0.5A:1.0V; (8)Maximum DC Reverse Current at Rated DC Blocking Voltage:TJ=25℃:5.0uA, TJ=125℃:500uA; (9)Typical Junction capacitance:25pF; (10)Operating Junction and Storage Temperature Range:-55℃ to +150℃.
Features
B10S features: (1)Plastic material used carries Underwriters Laboratory recognition 94V-O; (2)Low leakage; (3)Surge overload rating-- 30 amperes peak; (4)Ideal for printed circuit board; (5)Exceeds environmental standards of MIL-S-19500; (6)In compliance with EU RoHS 2002/95/EC directives.

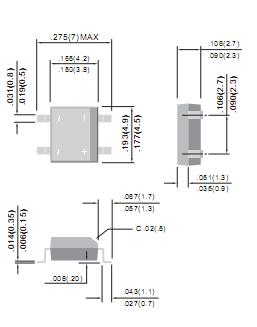

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 B10S-G |
Comchip Technology |
Bridge Rectifiers MBS GPP 0.8A 1000V Rect. Bridge Diode |
Data Sheet |
|
|
||||||||||||
 |
B10S-HF |
|
DIODE BRIDGE 1000V 0.8A MBS |
Data Sheet |
|
|
||||||||||||
|
B10SS |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
B10SGS |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
B10S |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
