Product Summary

The BR210 is a 2.0A mini surface mount schottky barrier rectifier.

Parametrics

BR210 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:100V; (2)Maximum RMS Voltage:70V; (3)Maximum DC Blocking Voltage:100V; (4)Maximum Average Forward Current:2.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):50A; (6)Typical thermal resistance:20℃/W; (7)Maximum Forward Voltage at 2.0A, per element:0.80V; (8)Maximum DC Reverse Current at TJ=25℃:0.05mA; (9)Operating Junction and Storage Temperature Range:-55℃ to +175℃.

Features

BR210 features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)For surface mounted applications; (4)Low profile package; (5)Built-in strain relief; (6)Metal to silicon rectifier. majority carrier conduction; (7)Low power loss,high efficiency; (8)High surge capacity; (9)For use in low voltage high frequency inverters, free wheeling, and polarity protection applications; (10)In compliance with EU RoHS 2002/95/EC directives.

Diagrams

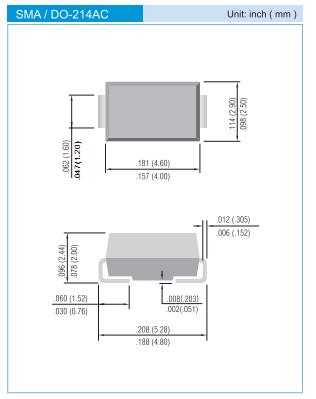

BR210 package dimensions
