Product Summary

The CLA4608-000 is a silicon limiter diode, packaged and bondable chip. The CLA4602-000 silicon limiter diode provides passive receiver protection over a wide range of frequencies from 100 MHz to over 30 GHz. These devices use Skyworks ellestablished silicon technology resulting in high resistivity and tightly controlled base width PIN limiter diodes. Limiter circuits using these devices perform with strong limiting action and low loss.

Parametrics

CLA4608-000 absolute maximum ratings: (1)Reverse voltage VR: Minimum rated breakdown voltage; (2)Forward current IF: 200 mA; (3)Junction temperature TJ: –65 +175℃; (4)Storage temperature TSTG: –65 +200℃.

Features

CLA4608-000 features: (1)Established Skyworks limiter diode process; (2)High power, mid-range, and cleanup designs; (3)Low insertion loss: 0.1 dB @ 10 GHz; (4)Power handling to +66 dBm; (5)Tight control of I layer base width; (6)Mesa and planar chip designs.

Diagrams

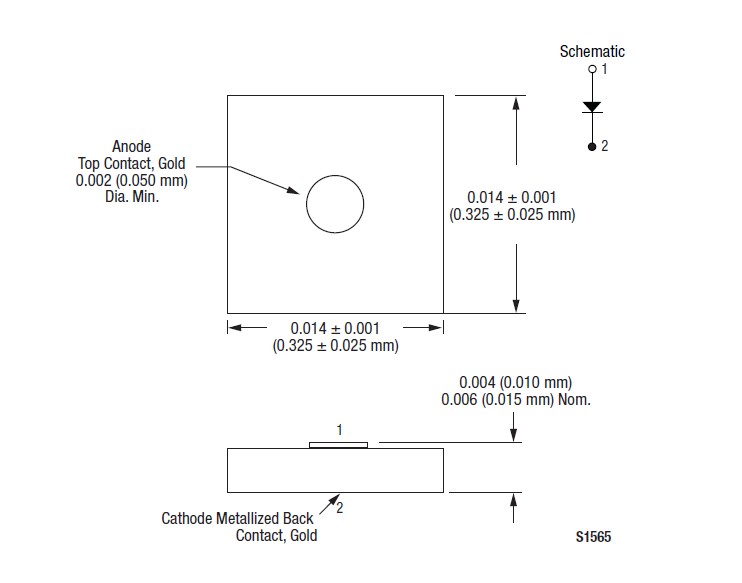

CLA4608-000 package diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CLA4608-000
CLA4608-000

DIODE LIMITER SILICON 120-180V
Data Sheet
0-50: $3.30
50-100: $3.00
100-500: $2.07
500-1000: $1.65
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CLA4601 Series
CLA4601 Series
Other

Data Sheet
Negotiable
CLA4601-000
CLA4601-000

DIODE LIMITER SILICON 15-30V
Data Sheet
0-100: $3.00
100-500: $2.07
CLA4602 Series
CLA4602 Series
Other

Data Sheet
Negotiable
CLA4602-000
CLA4602-000

DIODE LIMITER SILICON 15-30V
Data Sheet
0-50: $3.30
50-100: $3.00
100-500: $2.07
CLA4603 Series
CLA4603 Series
Other

Data Sheet
Negotiable
CLA4603-000
CLA4603-000

DIODE LIMITER SILICON 20-45V
Data Sheet
0-50: $3.30
50-100: $3.00
100-500: $2.07
